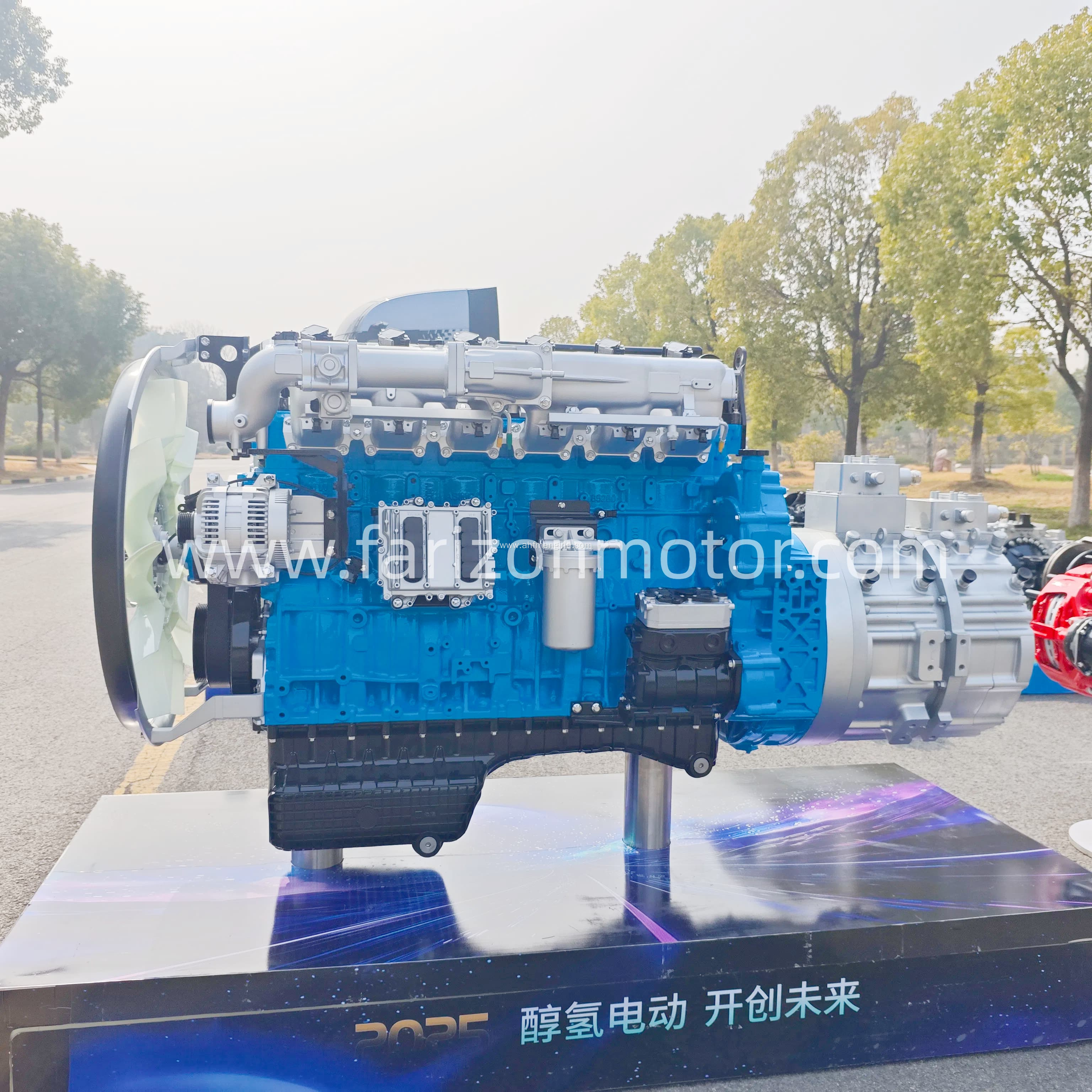

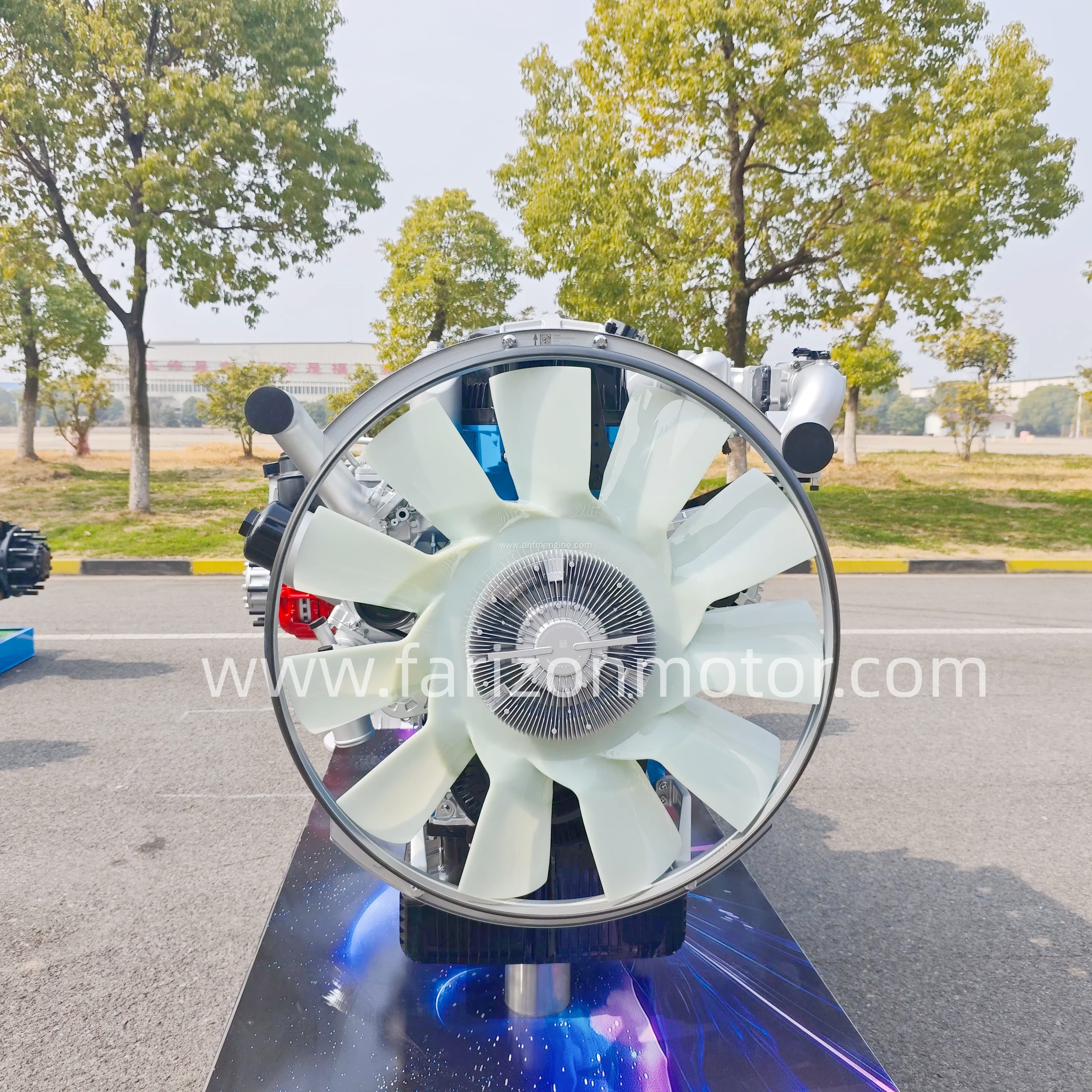

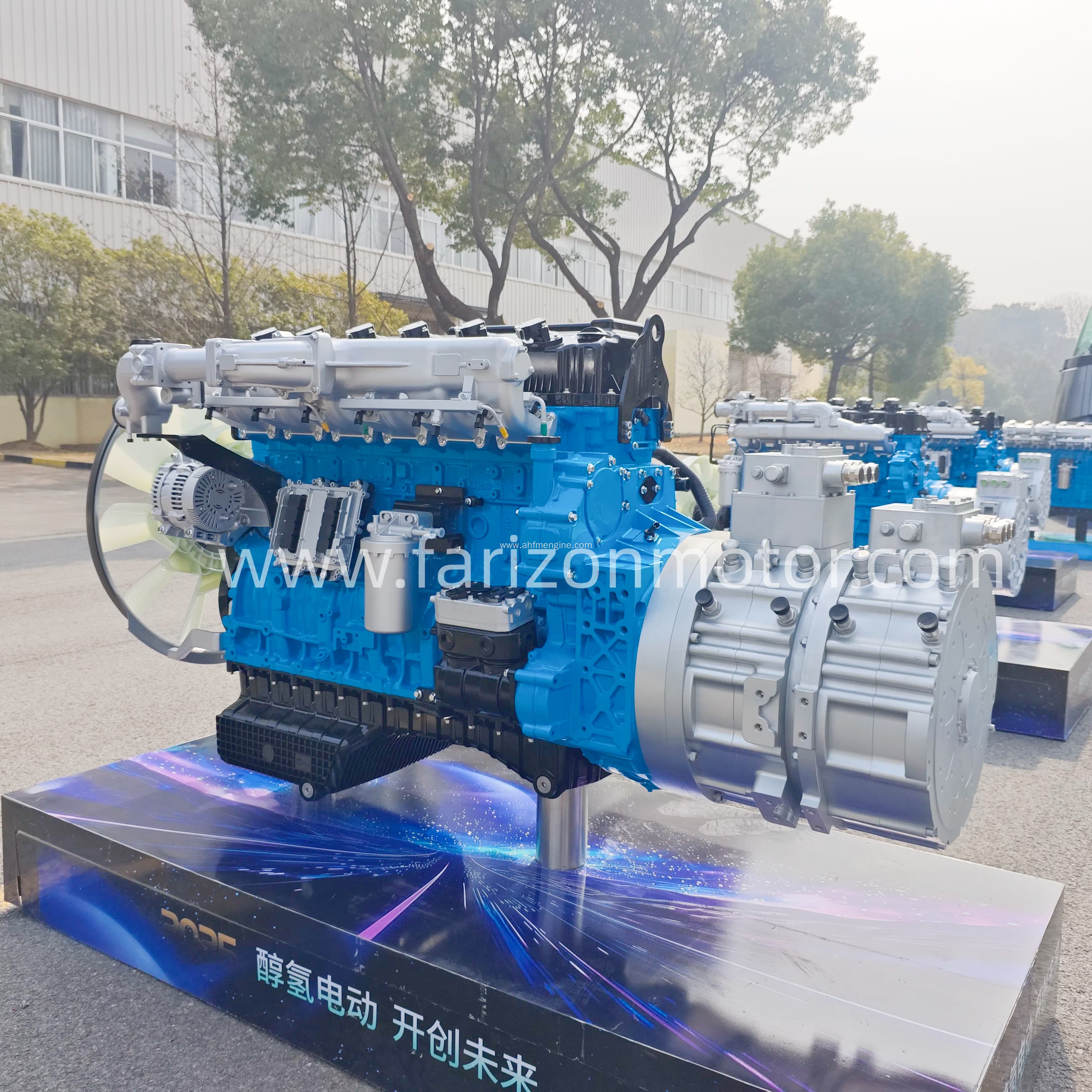

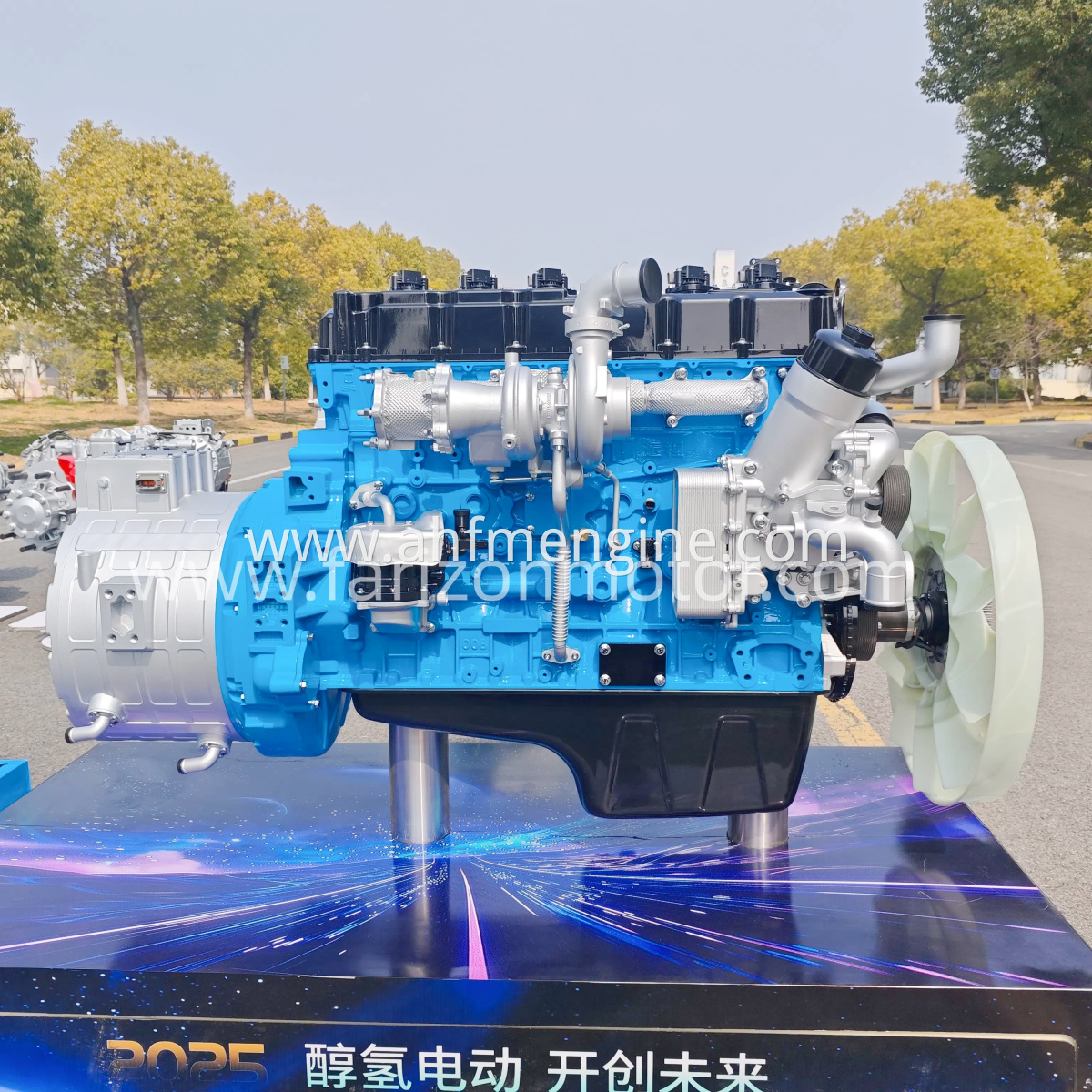

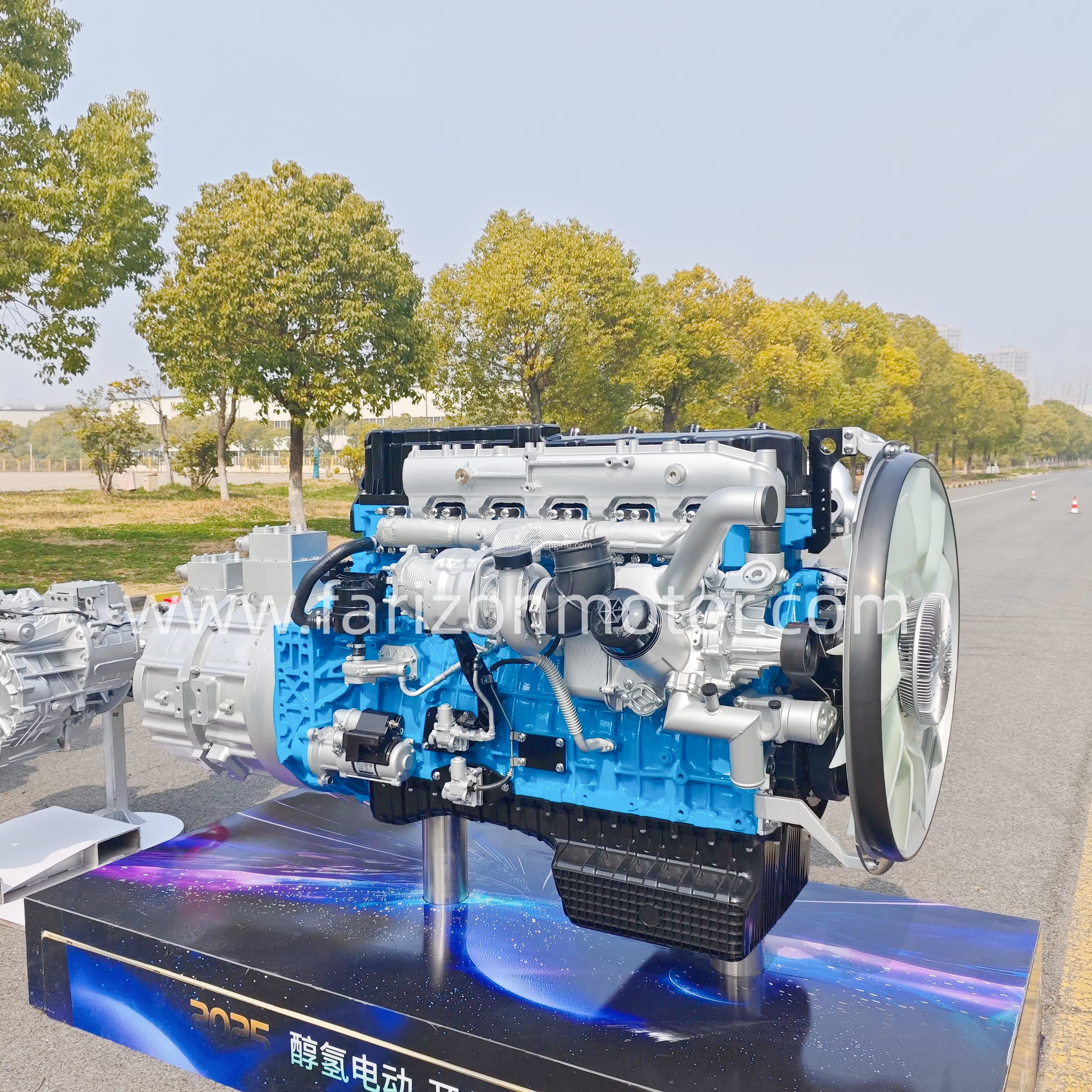

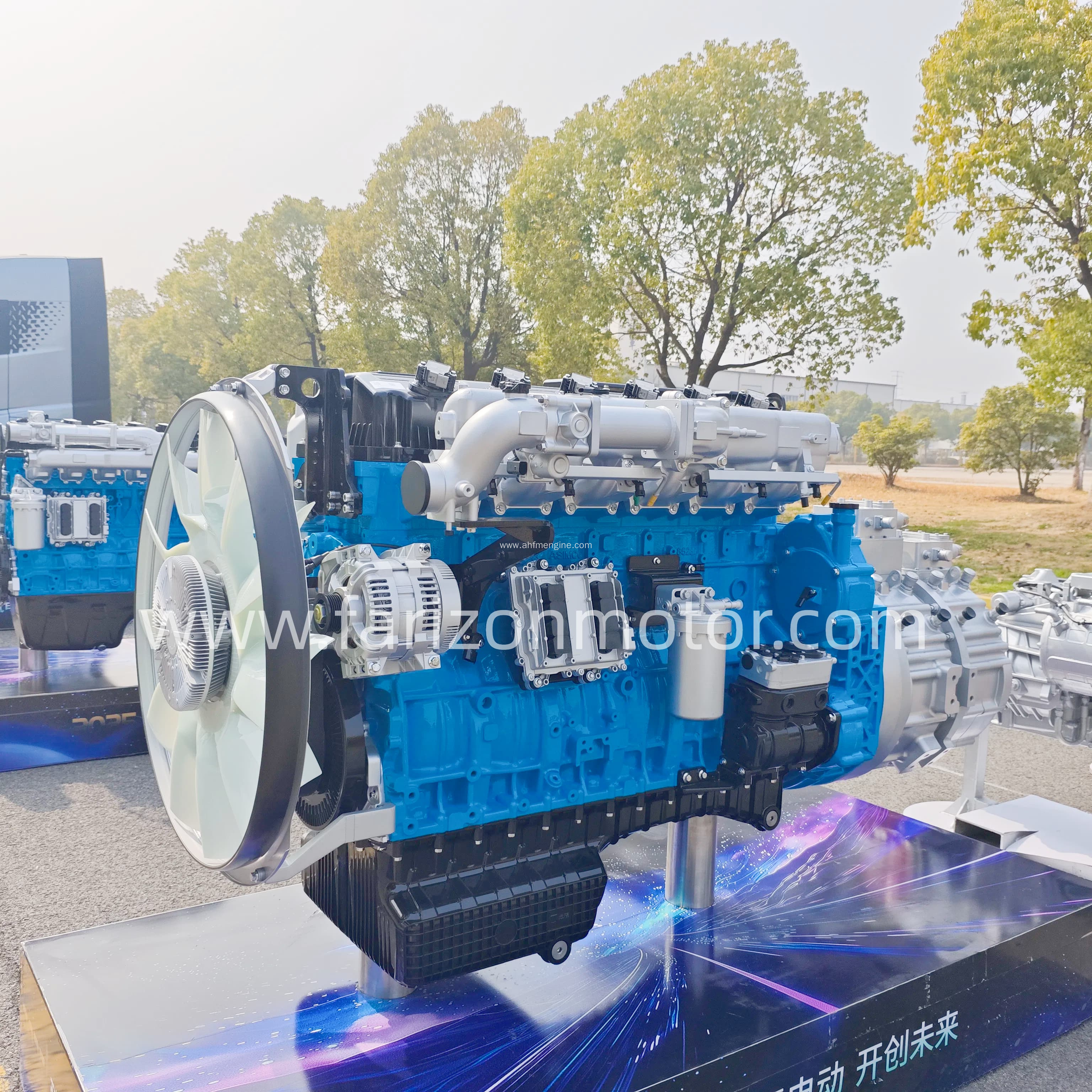

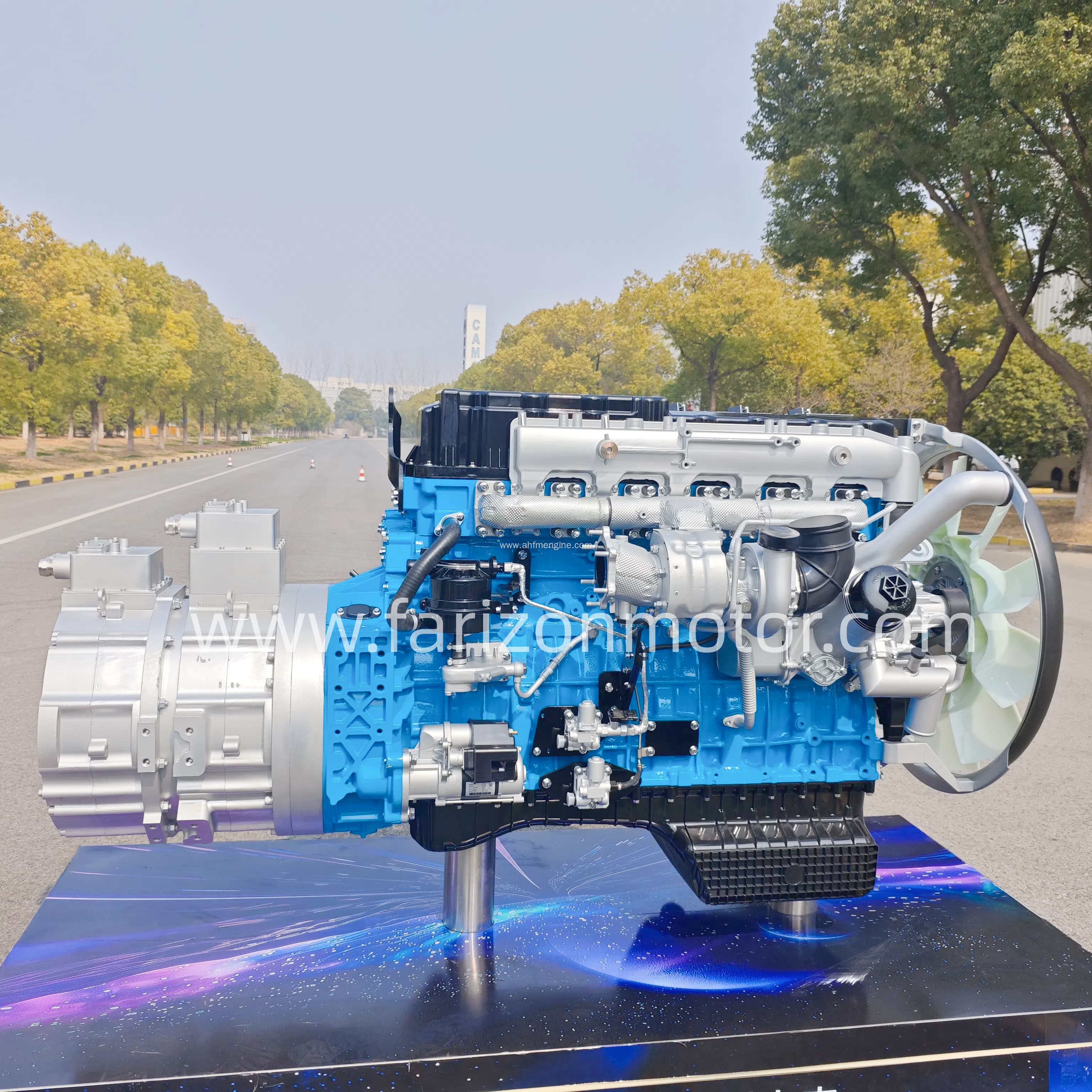

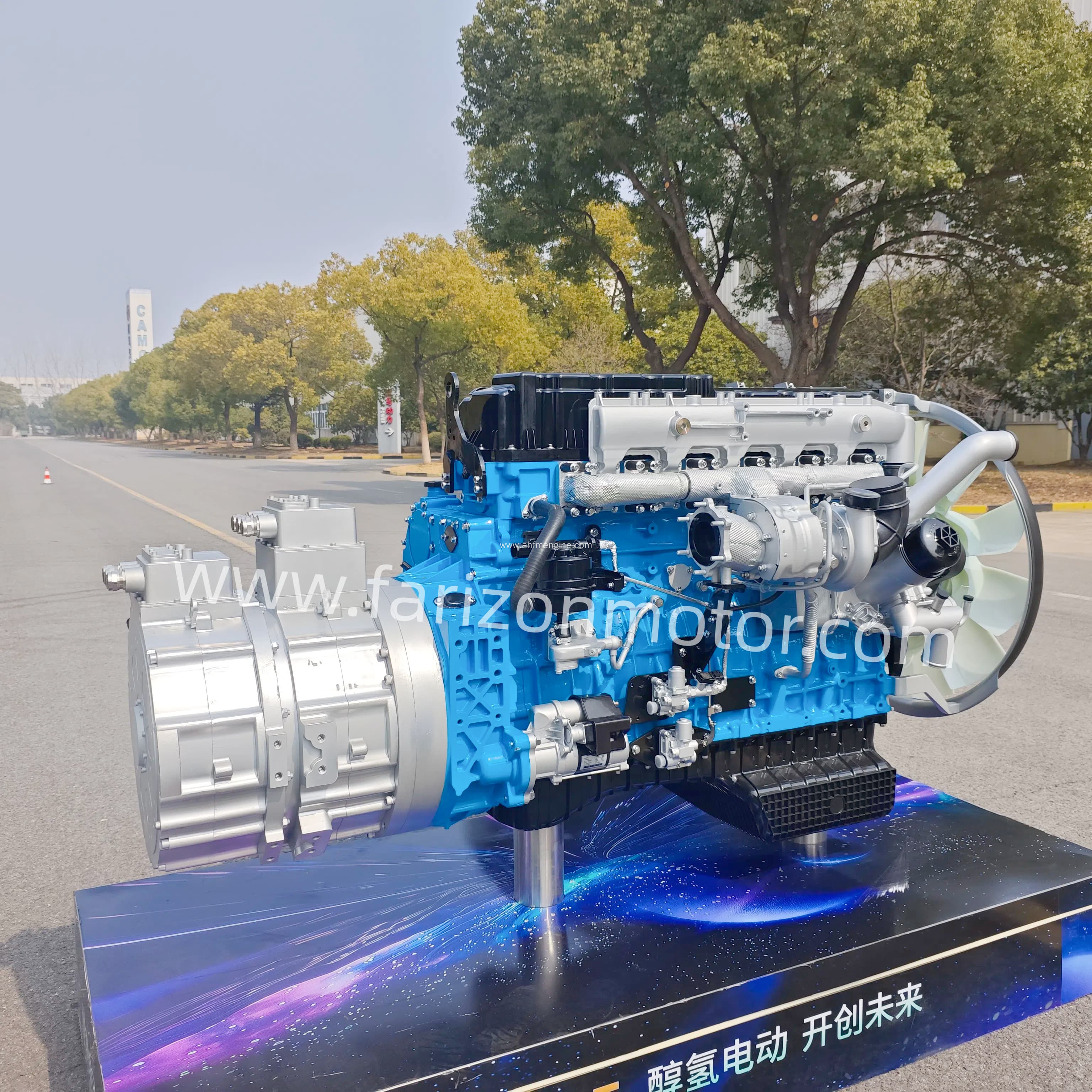

Advanced Non Road Engine CAMC GS13M Methanol Fueled

Basic Info

Model No.: GS13M480HG-41

Product Description

The Methanol non road GS13M series engine has fully switched to the second-generation Geely autonomous methanol control system,using M100 methanol cleanenerey.It has comprehensively improved ineffcient combustion,low-temperature stating Intelligent hybrid,emission control corrosion and wear resistance,creating excellent performance of this engine with high peformance,low Fuel consumption,high reliability and low emissions.Fully validated under application conditions such as generator sets,ship engines,and construction machinery:

High performance:adopting high compression ratio,high-energy ignition,high roll fow inlet structure,while optimizing the valve timing mechanism,adopting technologies such as intake turbocharging and intercooling to make combustion more complete and power more powerful;

Low fuel consumption:optimizing combustion through the second-generation Geely autonomous methanol control system,the engine has better fuel economy,low operatng cost,and extremely high cost-effectiveness,which can save 20% compared to Diesel Engines in terms of economy;

High reliability:Adhere to the concept of high-quality development,from a technical perspective CAE analysis and experimental verifiction are considered from multiple dimensions to ensure reliable product quality and long service life,B10 has a life span of≥1.2 million kilometers.

Ultra low emissions:Methanol is recognized as a Clean energy source.Compared to conventional fuels such as gasoline and diesel,methanol combustion is morecomplete and thorough,and its emisions incude CO HC and Nox emissions have sigificantly decreased,with almost no pariculate emissions,and emissions have decreased by≥85%.

Engine performance parameters

项目	单位	GS13M480HG-41工程机械发动机参数
型式	一	直列、四冲程、液冷、增压中冷
燃料类型	一	主燃料： M100甲醇	辅助起动燃料：92#汽油
	一	不使用汽油辅助起动装置，需标配冷却液加热系统保证发动机启动
额定功率/转速	kW/r/min	353/1900
最大扭矩/转速	Nm/r/min	2200/1100-1400
最高空载转速	r/min	2100±50
怠速	r/min	600±50
气缸数-缸径×行程	mm	6-130×161
工作顺序	一	1-5-3-6-2-4
活塞总排量	L	12.82
机油消耗率	%	≤0.1
外特性最低比油耗率	g/kwh	≤415
发动机质量	kg	1180
涡后排气温度	℃	≤559(测试环境温度25℃)
安装倾角	。	≤5(推荐0°)
允许倾角	0	≤25
噪声限值	dB	≤97
