| 发动机性能参数/Engine performance parameters | | 项 目 | 单位 | GS13M435HF发电机组参数 | | 工况 | 功率 | 燃油消耗量 | | 型式 | 一 | 直列、四冲程、液冷、增压中冷 | | | kW | Kg/h | | 燃料类型 | 一 | 主燃料：M100甲醇 | 辅助启动燃料：92#汽油 | | 备用110% | 352 | 154.13 | | 一 | 不使用汽油辅助起动装置，需标配冷却
液加热系统保证发动机启动 | | 常用100% | 320 | 139.01 | | 气缸数-缸径×行程 | mm | 6-130×161 | | 80% | 256 | 111.96 | | 压缩比 | 一 | 12.5:1 | | 50% | 160 | 74.71 | | 活塞总排量 | L | 12.82 | | | 转速 | rpm | 1500@50 | | 30% | 96 | 51.72 | | 发动机质量 | kg | 1180 | | 10% | 32 | 27.84 | | | | | | | | | | 50Hz | 持续功率kW COP | 基本功率kW PRP | 限时运行功率kW LTP | 应急备用功率kW ESP | 建议机组功率
Generator set power | 250 kW | 250 kW | 300 kW | 300 kW | |
The

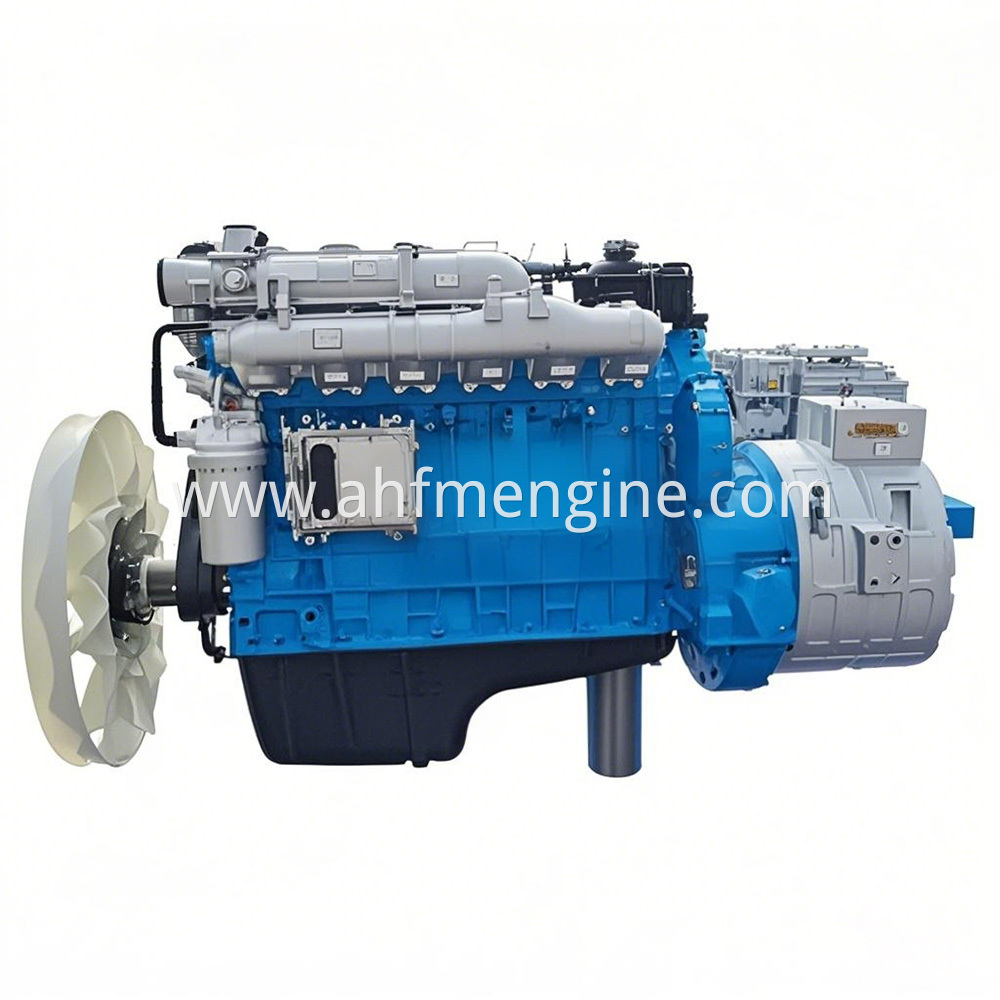

Methanol non road GS13M series engine has fully switched to the second-generation Geely autonomous methanol control system,using M100 methanol cleanenerey It has comprehensively improved ineficent combustion,low-temperature stating,intelligent hybrid,emision control,corosion and wear resistance,creating excellent performance of this engine with high performance,low
Fuel consumption,high reliabilty,and low emisions.Fully validated under application conditions such asgenerator sets,ship engines,and construction machinery:
High performance:adopting high compression ratio,high-energy ignition,high rolfow inlet structure,while optimizing the vale timing mechanism,adopting technologies such as intake turbochargingand intercooling to make combustion more complete and power more powerful;
Low fuel consumption:optimizing combustion through the second-generation Geely autonomous methanol control system,the engine as beter fuel economy,lowoperating cost,and extremely high cost-effectiveness,which can save 20%compared to
Diesel Engines in terms of economy;
High reliability:Adhere to the concept of high-quality development,from a technical perspective CAE analysis and experimental verification are considered frommultiple dimensions to ensure reliable product quality and long service life,B10 has a lifespan of≥1.2 million kilometers.
Ultra low emisions:Methanol is recognized as a
Clean energy source.Ccompared to conventional fuels such as gasoline and diesel,methanol combustion is morecomplete and thorough,and its emisions include CO HC and Nox emisions have sinificantly decreased,with almost no particulate emisions,and emisions havedecreased by≥85%.
