CAMC Green Power Methanol Generator for Marine Application

Basic Info

Model No.: G513M435HC-20

Product Description

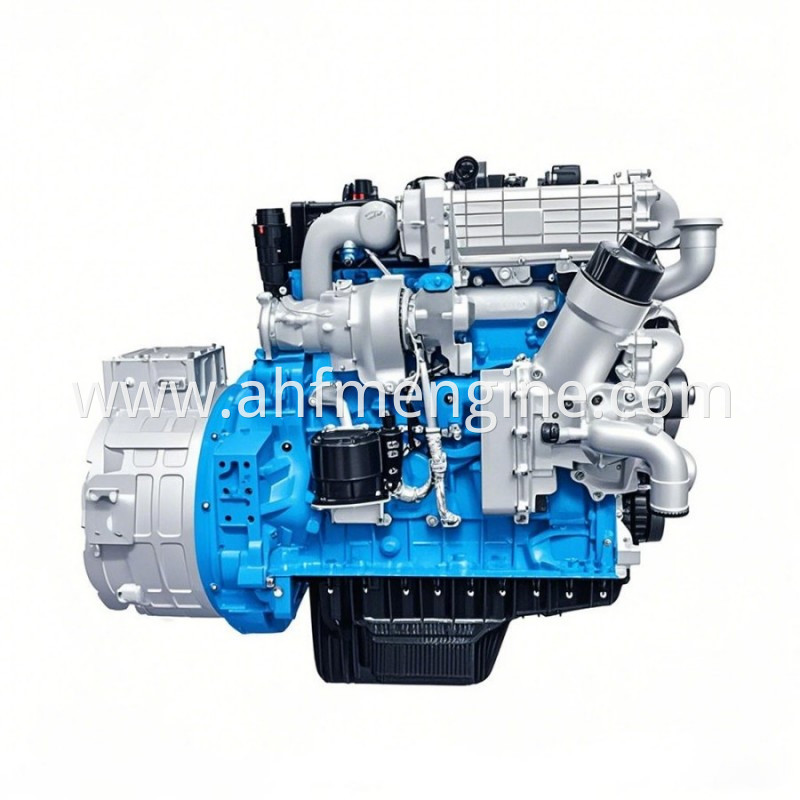

The Methanol non road GS13M series engine has fully switched to the second-generation Geely autonomous methanol control system,using M100 methanol cleanenerey.It has comprehensively improved ineffcient combustion,low-temperature stating Intelligent hybrid,emission control corrosion and wear resistance,creating excellent performance of this engine with high peformance,low Fuel consumption,high reliability and low emissions.Fully validated under application conditions such as generator sets,ship engines,and construction machinery:

High performance:adopting high compression ratio,high-energy ignition,high roll fow inlet structure,while optimizing the valve timing mechanism,adopting technologies such as intake turbocharging and intercooling to make combustion more complete and power more powerful;

Low fuel consumption:optimizing combustion through the second-generation Geely autonomous methanol control system,the engine has better fuel economy,low operatng cost,and extremely high cost-effectiveness,which can save 20% compared to Diesel Engines in terms of economy;

High reliability:Adhere to the concept of high-quality development,from a technical perspective CAE analysis and experimental verifiction are considered from multiple dimensions to ensure reliable product quality and long service life,B10 has a life span of≥1.2 million kilometers.

Ultra low emissions:Methanol is recognized as a Clean energy source.Compared to conventional fuels such as gasoline and diesel,methanol combustion is morecomplete and thorough,and its emisions incude CO HC and Nox emissions have sigificantly decreased,with almost no pariculate emissions,and emissions have decreased by≥85%.

发动机性能参数/Engine performance parameters

型号	GS13M435HC-20
型式	直列6缸、水冷、甲醇燃料发动机
排量/缸数-缸径×冲程	12.8L/6-130×161
压缩比	12.5:1
点火顺序	1-5-3-6-2-4
燃料	M100甲醇
额定功率/转速	320kW/1500rpm
超负荷功率/转速	352kW/1500rpm
外特性最低燃油消耗率	≤450g/kWh
怠速转速	600±50
排气污染物排放	C2/IMO2
用途	船用辅机/增程
