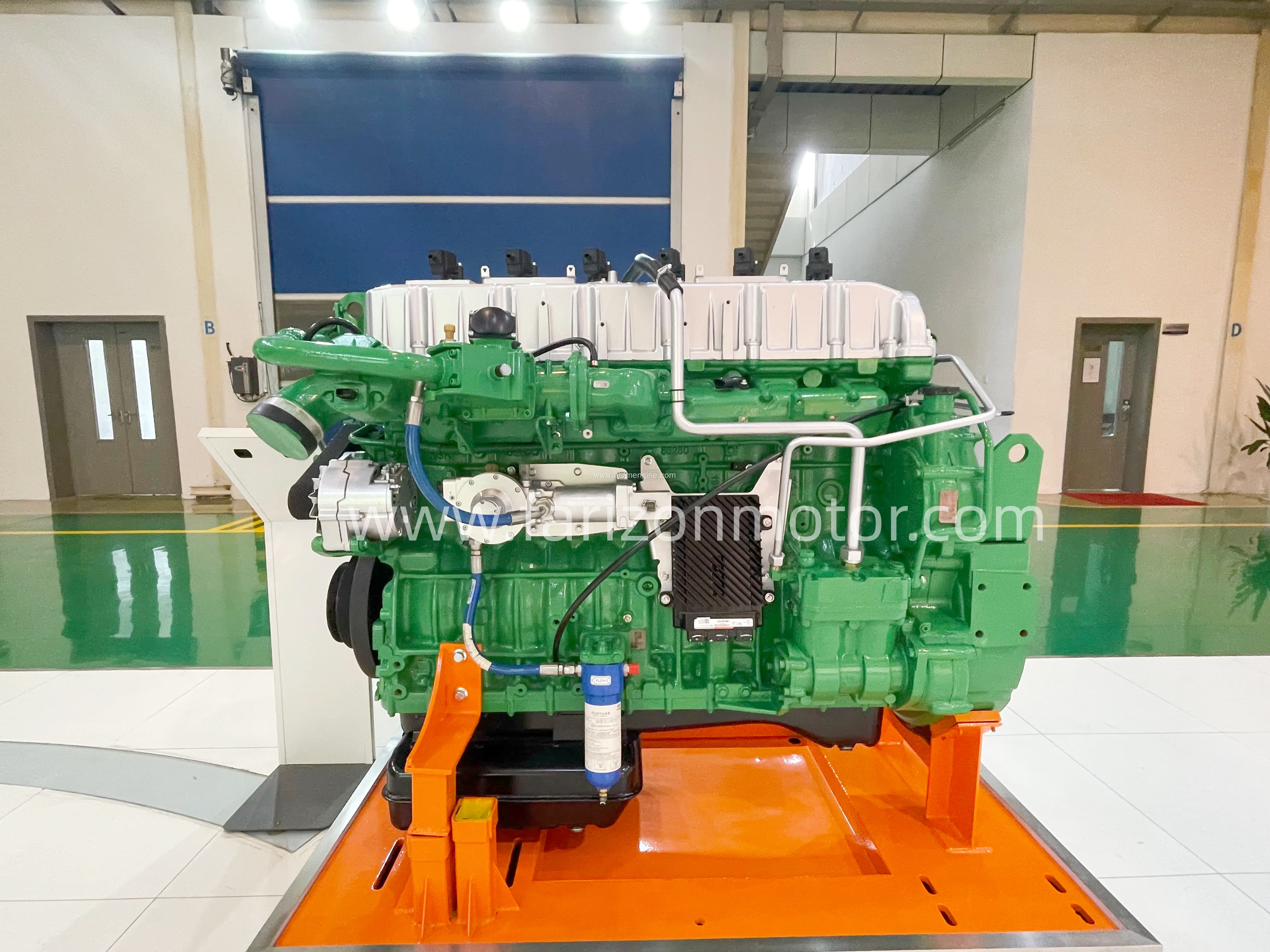

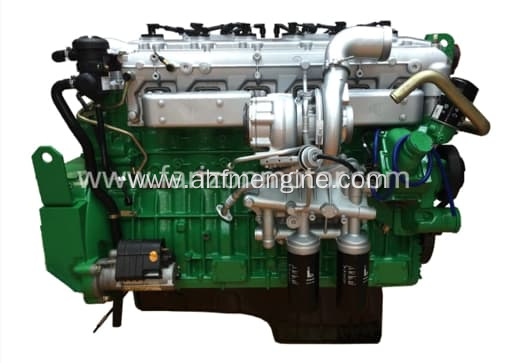

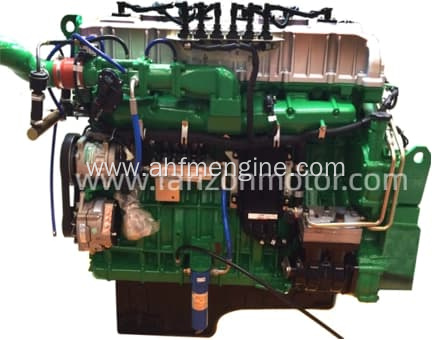

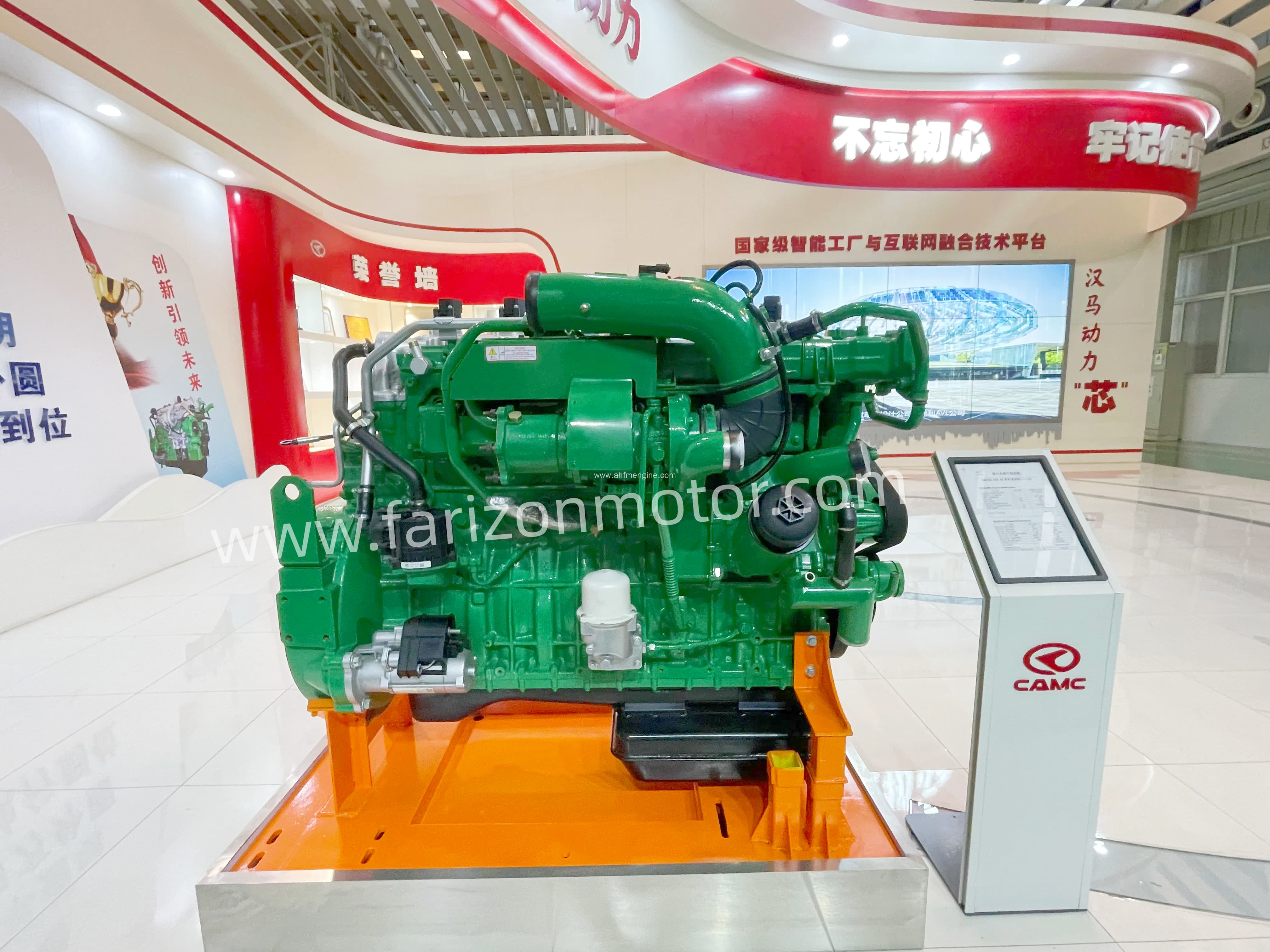

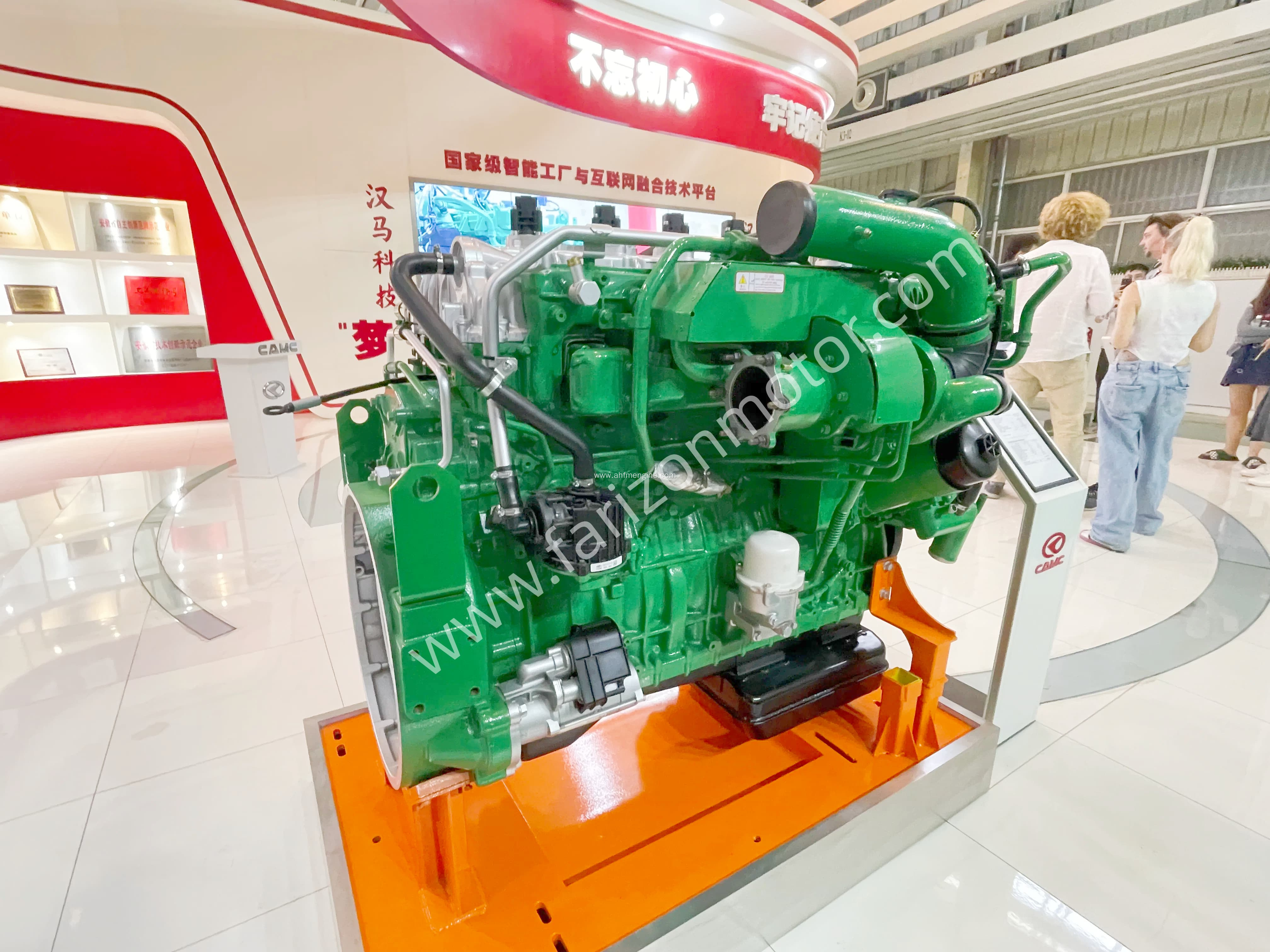

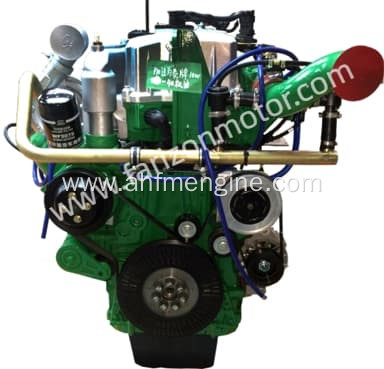

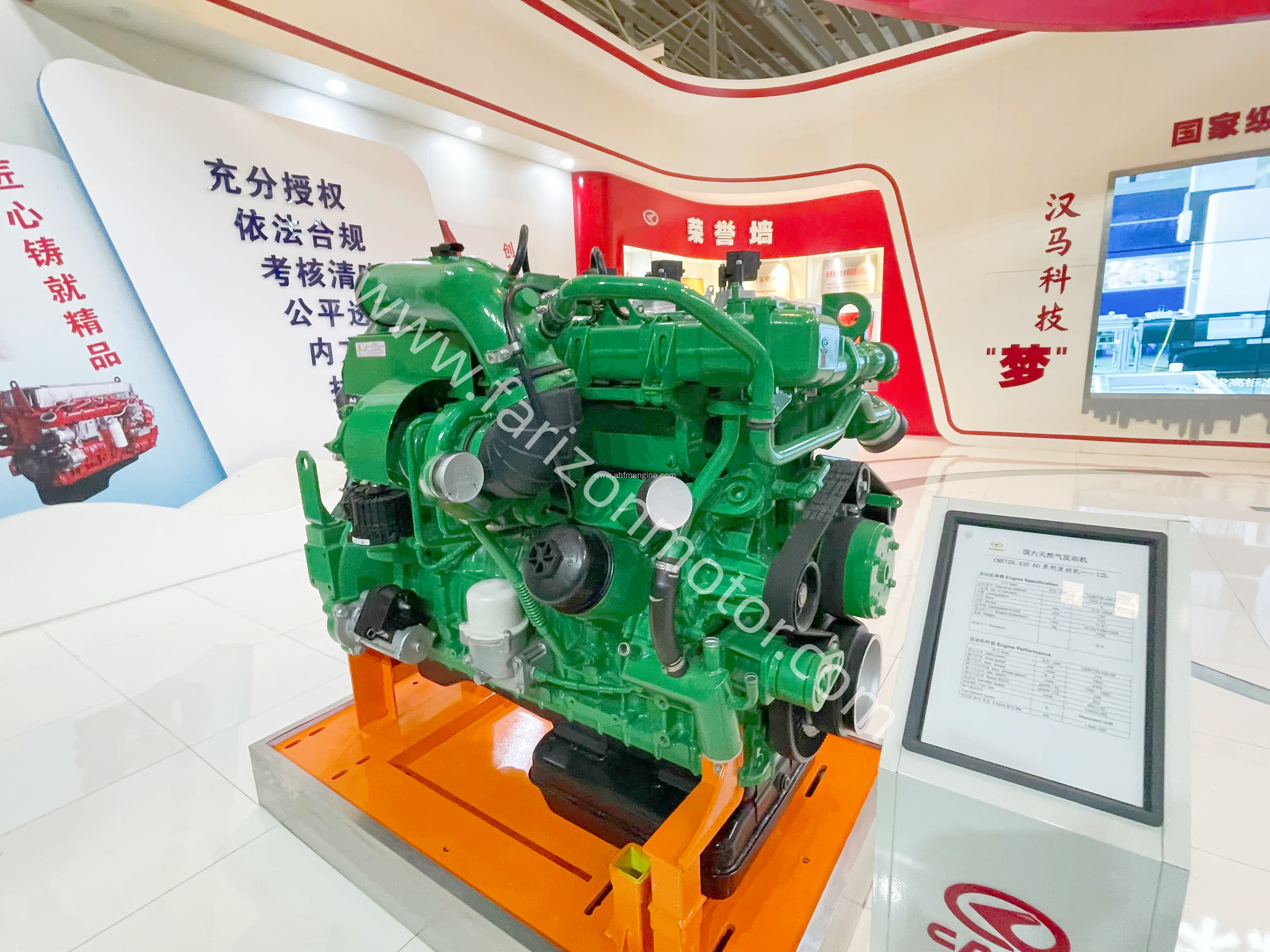

Natural Gas Engine for Continuous Power Generation

Basic Info

Model No.: HMT13F/HMT12F

Product Description

Main structura features:

Adopt advanced design structures such as single overhead camshaft,integral four-valve cylinder head,in-line six cylinders,water-cooled wet cylinder liner,four-stroke,rear gear chamber,etc.;

Water-cooled turbocharger,speacial piston for shallowbasin type Gas Engine,high temperature and wear-re-sistant valve seat ring, special piston ring for gas engineto prevent Oil burning.

Control system:

Woodward PG+low-pressure gas injection system,andmatching intelligent high-energy ignition system.

发动机性能参数 Engine performance parameters

型号Model	单位Unit	HMT12F.380 30	HMT12F.408 32	HMT13F.408 30	HMT13F.435 32
额定功率/转速 Rated power/Speed	kW/r/min	280/1500	300/1800	300/1500	352/1800
超负荷功率 Overload power/Speed	kW/r/min	308/1500	330/1800	330/1500	352/1800
型式Type		立式直列水冷四冲程 Vertical Inline Water-cooled four stroke
吸气方式Intake way		增压中冷 Turbo-charged & inter-cooled
缸数 Number of cylinders		6	6	6	6
缸径x行程Bore×Stroke	mm x mm	128x153	128x153	130x161	130x161
压缩比Compression ratio		12:1	12:1	11.5:1	11.5:1
排量Displacement	L	11.8	11.8	12.8	12.8
比油耗 Specific Fuel consumption	g/kW·h	≤190	≤191	≤192	≤192
机油容量Oil capacity	L	38	38	41	41
噪声Noise		≤97dB(A)
排放水平Emission level		GB20891中国第三阶段China Phase Ⅲ
长x宽x高L×W×H	mm	1360x898x1138	1360x898x1138	1436x939x1479	1436x939x1479
重量Weight	kg	1065	1065	1078	1078
