Durable Methanol Power Engine CAMC GS14M Model

Basic Info

Model No.GS14M540H-61 GS14M510H-61 GS14M480H-61

Product Description

The GS14M series National VI heavy-duty Methanol Engine uses M100 Methanol Clean energy,and adopts multiple advancedtechnologies such as intake turbocharging intercooling,theoretical air-Fuel ratio closed-loop control,cooling EGR system,three-way catalytic converter,etc,creating excellent performance ofthis engine with high performance,low fuel consumption,high reliability,and lowemissions.
New Design:A new roof style cylinder head is designed to improve theengine's thermal efficiency,while adopting a high compression ratio,high-energy ignition,and high roll flow combustion chamber structure.At the same time,theairway and timing mechanism are optimized,and technologies such as intaketurbocharging and intercooling are used to make combustion more efficient andpower stronger;
Low fuel cost:Adopting advanced technologies such as theoretical air-fuelratio closed-loop control and multi-point fuel injection to optimize combustion,the engine has better fuel economy,low operating costs,and extremely highcost-effectiveness.Compared to Diesel Engines,it can save 31.4%in fuel economy;
Reliable quality:Adhere to the development concept of high quality,from the technical route CAE analysis and experimentalverification are considered frommultiple dimensions to ensure reliable product quality,B10 has a lifespan of≥1.5million kilometers;
Ultra low emissions:Methanol is recognized as a clean energy source.Compared to conventional fuels such as gasoline and diesel,methanolcombustion is more complete and thorough,and its emissions include CO HC and NOx emissions have significantly decreased,with a reduction of ≥87% and noparticulate emissions.

MEE96
发动机性能参数/Engine  performance  parameters
         型号
主要技术参数
单位 GS14M540H-61 GS14M510H-61 GS14M480H-61
型  式 直列六缸、水冷、甲醇燃料发动机
燃料类型 主燃料: M100甲醇 辅助起动燃料:92#汽油
不使用汽油辅助起动装置,需标配冷却液加热系统保证发动机启动
缸数-缸径×行程 mm 6-133×164
发动机排量 L 13.67
点火顺序 1-5-3-6-2-4
额定功率/转速 kW/r/min 397/1800 375/1800 353/1800
最大扭矩/转速 N.m/r/min 2500/(1100~1400) 2400/(1000~1400) 2300/(1000~1400)
怠速转速 r/min 600±50

Product Categories : Methanol Engine > Methanol Generator Engine

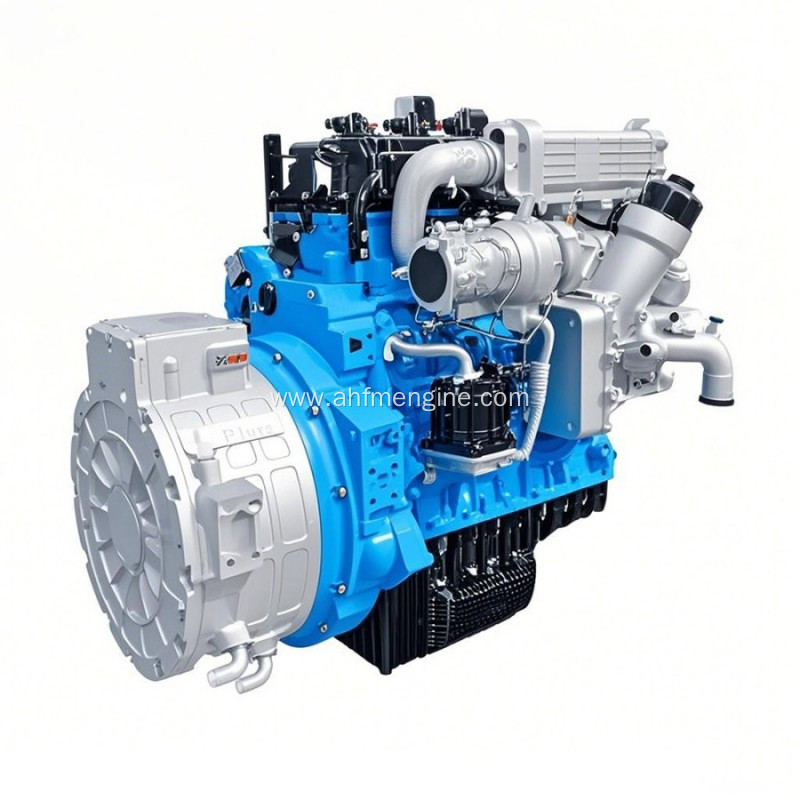

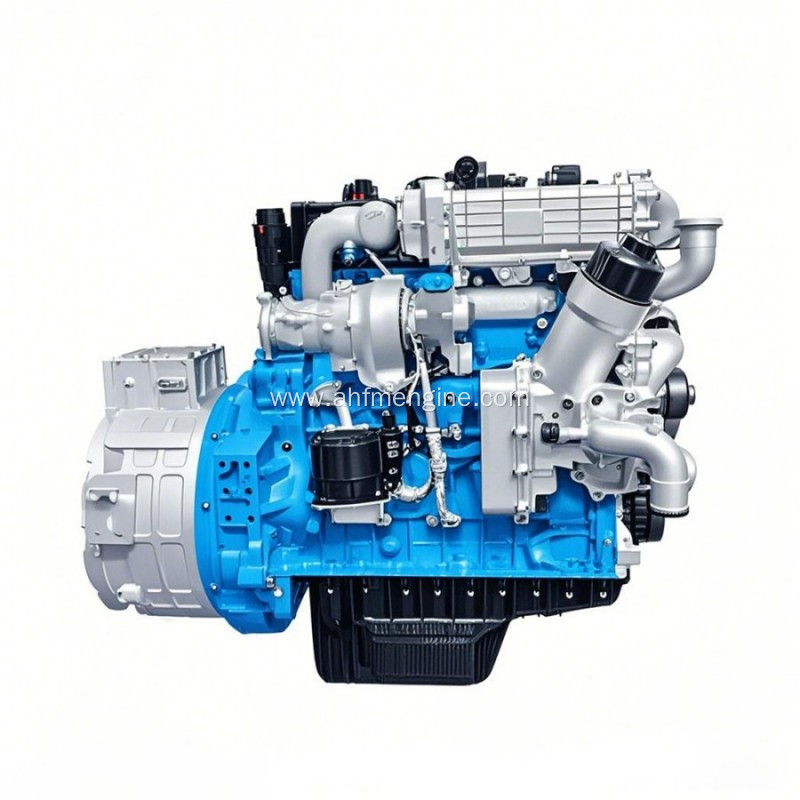

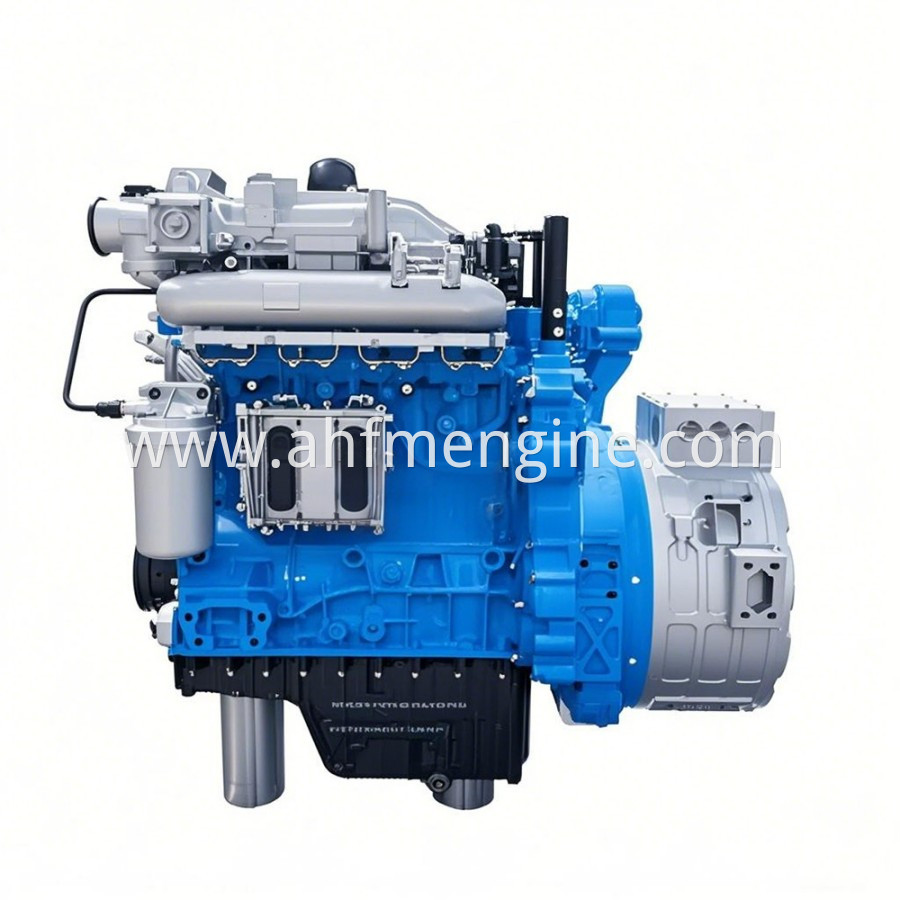

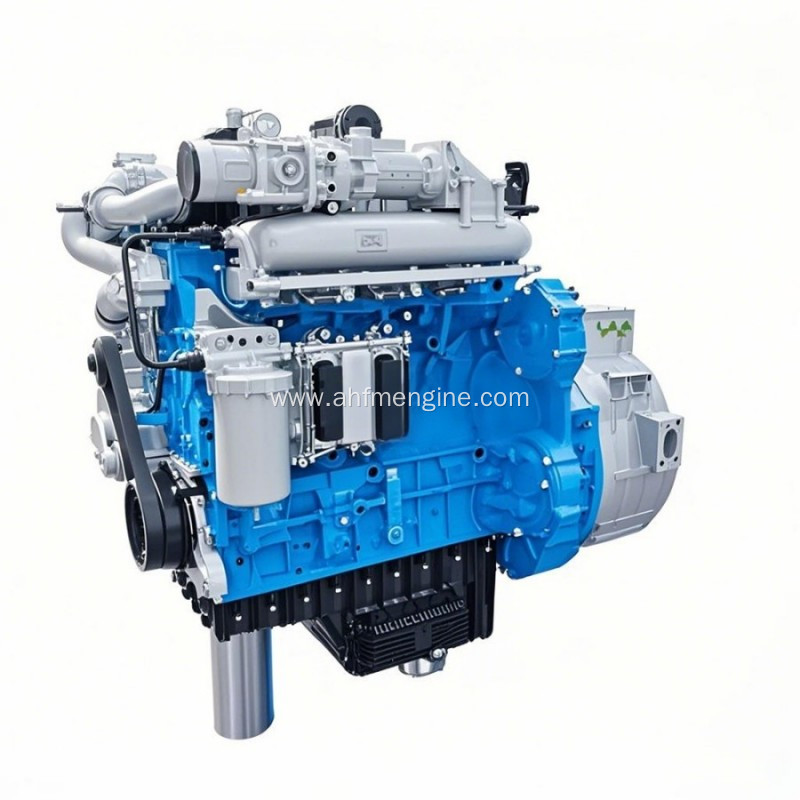

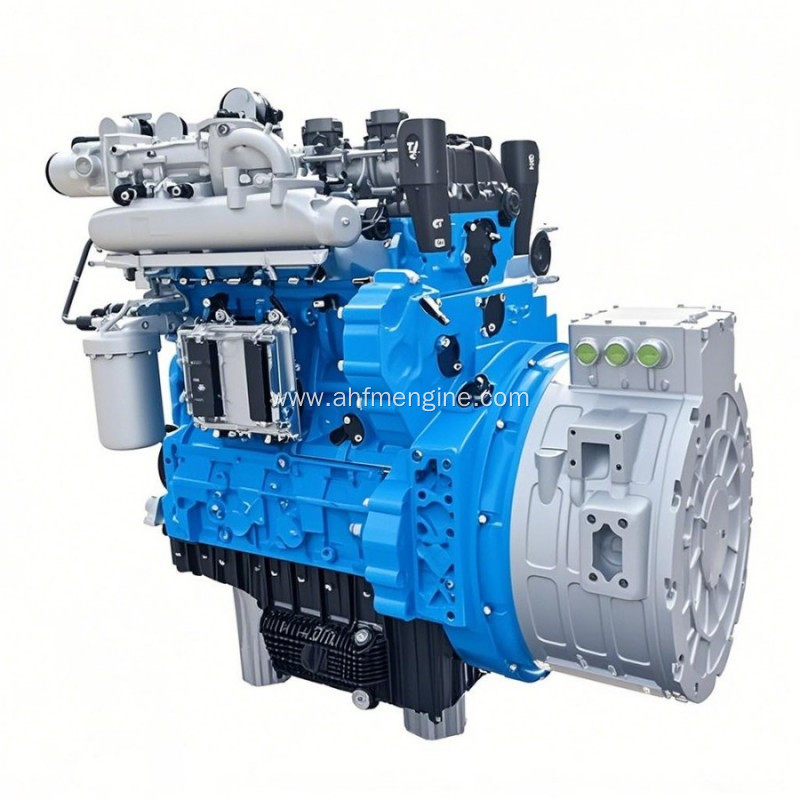

Product Images
